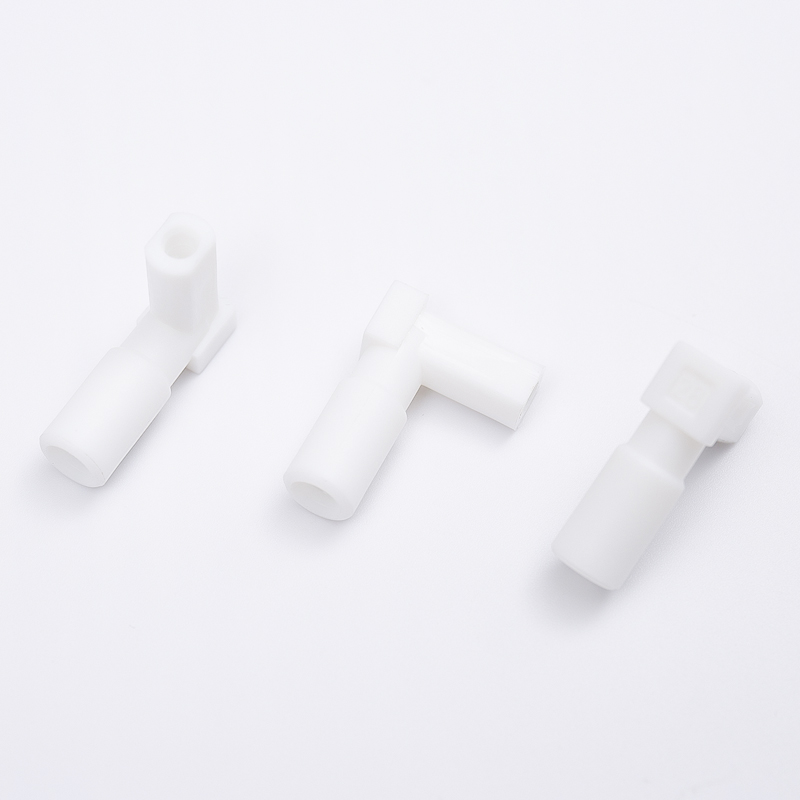

L-030 L shape Spray Nozzle for aluminum cans

A straight actuator discharges spray in line with the valve stem axis, requiring the user to orient the entire can toward the target surface. The L-030 redirects the output 90 degrees through an internal channel, allowing the user to hold the can in a neutral upright position while directing spray at a perpendicular or angled surface. This geometry is particularly useful for recessed cavities, underside surfaces, and areas with limited clearance.

The L-030 is designed for standard aluminum aerosol cans equipped with common valve stem diameters. It is specifically aligned with quantitative valve assemblies within the L Series, though compatibility with non-quantitative valves depends on matching stem dimensions. Users should confirm stem outer diameter and socket clearance before use. The nozzle is not designed for bag-on-valve or pressurized barrier systems without separate verification.

Yes. The L-030 is a removable component. Provided the internal channel is cleared of residual material after each use (by actuating the can inverted briefly), the nozzle can be transferred between compatible cans. However, cross-contamination risk must be considered when switching between chemically incompatible formulations. In such cases, flushing with a compatible solvent or replacing the nozzle is recommended.

Reduced or absent output is typically caused by one of three conditions: partial clogging of the orifice or internal channel from dried or viscous residue; incomplete seating on the valve stem resulting in insufficient valve depression; or a depleted or pressure-deficient can. Inspect the orifice visually, reseat the nozzle firmly, and verify can pressure before suspecting a nozzle defect. Regular post-use flushing minimizes clogging incidents.

The nozzle's compact design supports outdoor portability, and its material construction is generally suited to ambient temperature ranges typical of field operations. However, aerosol performance in cold environments is primarily governed by propellant pressure rather than the nozzle itself. In low-temperature conditions, can output may diminish regardless of nozzle type. For high-humidity or corrosive environments, post-use cleaning and sealed storage are advisable to maintain channel integrity over repeated cycles.

By fixing the spray direction relative to the valve stem, the L-030 reduces the angular correction that users must manually apply when working on angled or underside surfaces. This results in a more stable, on-target output pattern with less overspray drift compared to tilting a straight actuator at an awkward angle. For metered or quantitative valve assemblies, the nozzle geometry helps preserve the consistency of each actuated dose by maintaining stable valve depression mechanics.
