How does the polytetrafluoroethylene coating give the D1S2.8 bottle valve super corrosion resistance and self-healing properties?

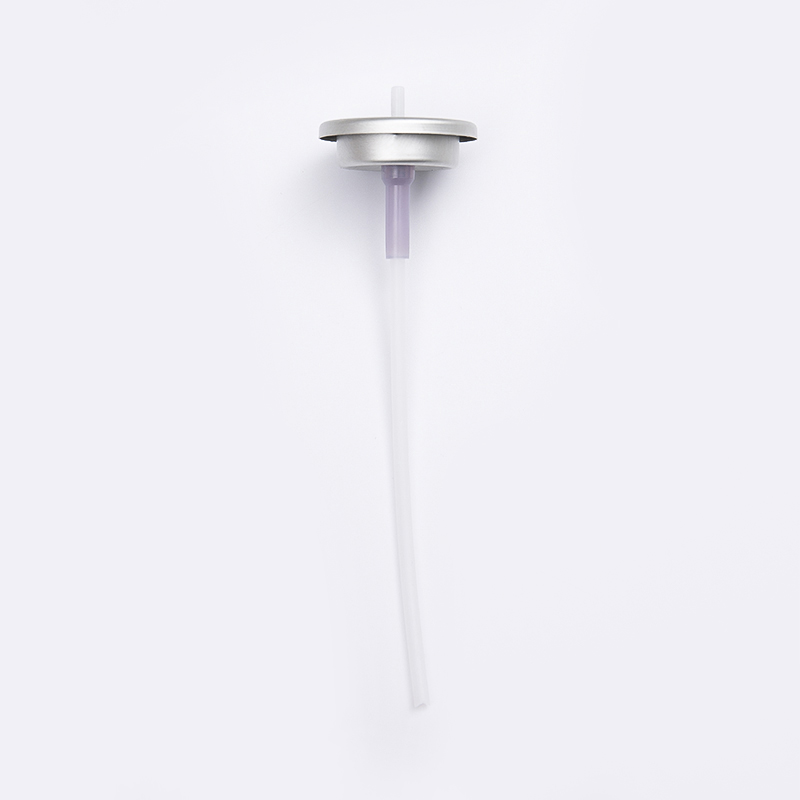

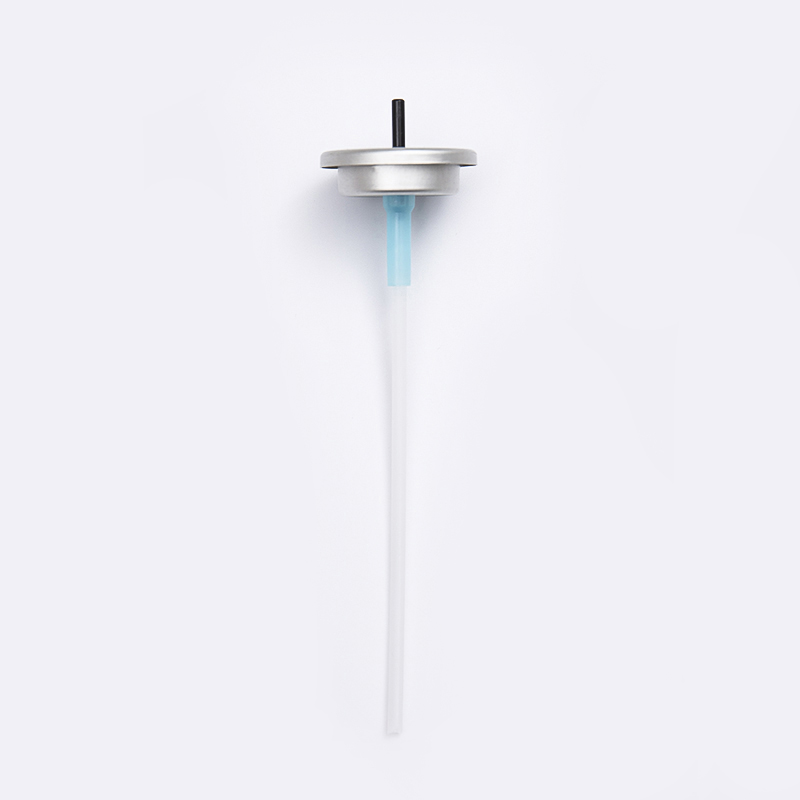

In the fields of chemical analysis, biopharmaceuticals and material research and development, the threat of solvent corrosiveness to equipment performance is becoming increasingly prominent. When traditional aluminum bottle valves come into contact with strong acids (such as concentrated sulfuric acid), strong alkalis (such as sodium hydroxide) and organic solvents (such as acetone), they are prone to surface corrosion, coating peeling or mechanical property degradation, resulting in reduced dosage accuracy and even equipment failure. The D1S2.8 120mcl dosage aluminum cup one-inch quantitative bottle valve introduces polytetrafluoroethylene (PTFE) coating, starting from the intrinsic properties of the material, to build an active protection system for corrosive environments, providing a new solution for precision metering equipment.

The strong C-F bond of the PTFE molecular chain gives it an extremely low surface energy (about 18mN/m), which is the core physical basis for achieving superhydrophobicity. In the 10μm coating, the PTFE molecular chains work together through the following mechanisms:
Directed molecular chain arrangement: During the spraying process, when the high-temperature molten PTFE cools on the surface of the TiN substrate, the molecular chains are arranged in the vertical direction to form a nano-scale rough structure.
Micro-nano composite structure: The coating surface is distributed with 50-200nm micron-scale protrusions and 10-50nm nano-scale pores. This structure makes the water droplet contact angle reach 110°, far exceeding the ordinary hydrophobic surface (>90°).
Rolling friction effect: When the corrosive liquid contacts the coating, the droplet forms a spherical shape due to the surface tension, and can roll down at an inclination angle of only 2°, reducing the contact time with the substrate by more than 90%.

The chemical inertness of PTFE comes from its fully saturated carbon-fluorine structure, which makes the interaction between molecular chains extremely strong and difficult to be destroyed by chemicals. Specifically, it is manifested as follows:
Solvent resistance: In organic solvents such as acetone and tetrahydrofuran, the helical conformation of the PTFE molecular chain remains stable, and the mass loss rate after 24 hours of immersion is less than 0.1%, which is much lower than that of traditional fluorocarbon coatings (about 1%).
Acid and alkali stability: In concentrated sulfuric acid (98%) and sodium hydroxide (30%), only very slow physical adsorption occurs on the PTFE surface, and no chemical bond breakage or molecular chain degradation is detected.
Weather resistance: In the range of -50℃ to 250℃, the crystallinity of the PTFE molecular chain remains stable, avoiding coating cracking caused by thermal expansion.

The self-healing ability of the PTFE coating stems from its unique molecular chain motion characteristics and pore structure:
Molecular chain migration: When micron-level scratches appear on the surface of the coating, the PTFE molecular chain can migrate along the scratch direction under stress and automatically fill the defect.
Porosity buffering effect: The micron-level pores distributed in the coating allow a small amount of liquid to penetrate, but the PTFE molecular chains on the pore wall are rearranged under liquid pressure to form a dynamic sealing layer.
Environmental responsiveness: In a humid environment, water molecules adsorbed on the PTFE surface can promote the slippage of molecular chains and accelerate the self-healing process.

The performance of PTFE coating is highly dependent on the spraying process parameters:
Substrate pretreatment: The TiN substrate needs to be plasma cleaned and treated with silane coupling agent to ensure that the coating adhesion is ≥8MPa.
Spraying parameters: Plasma spraying technology is used to control the spraying distance of 150mm, voltage of 80kV, and current of 1.2A to form a dense and uniform coating.
Post-treatment: After spraying, high-temperature sintering at 350℃ is performed to fully crystallize the PTFE molecular chain and improve the hardness (≥2H) and wear resistance of the coating.

To ensure the stability of coating performance, the following quality control standards need to be established:
Thickness uniformity: The coating thickness deviation is ≤±1μm through laser confocal microscopy.
Porosity control: The porosity is determined by mercury intrusion, and the target value is 15%-20% to balance hydrophobicity and self-healing ability.
Corrosion resistance verification: In a simulated corrosion environment (such as 1mol/L H₂SO₄+0.1mol/L NaCl), the impedance change of the coating is monitored by electrochemical impedance spectroscopy (EIS) to ensure that the impedance drop rate is <5% in 24 hours.

Analysis of the protection mechanism of PTFE coating
Superhydrophobicity reduces the risk of corrosion through the following mechanisms:
Droplet bounce effect: When high-speed droplets hit the coating, the superhydrophobic surface causes the droplets to bounce to avoid impact corrosion.
Air film isolation: When droplets roll down, an air film is formed on the coating surface, blocking the direct contact between the corrosive medium and the substrate.
Self-cleaning function: Superhydrophobicity makes it difficult for pollutants to adhere to the coating surface, reducing the occurrence of local corrosion.

The chemical inertness of PTFE achieves solvent protection in the following ways:
Physical shielding: The dense coating structure prevents solvent molecules from penetrating and avoids substrate corrosion.
Molecular compatibility: There is only a weak van der Waals force between PTFE and organic solvents, and no chemical reaction occurs.
Long-term stability: After 2000 hours of continuous contact with solvents, the coating mass loss rate is still less than 0.5%.

The self-healing mechanism extends the coating life through the following ways:
Microcrack repair: Under stress, PTFE molecular chains migrate to the cracks and form new chemical bonds.
Pore sealing: The penetrating liquid forms local high pressure in the pores, prompting the molecular chains to rearrange and close the pores.
Environmental induced repair: In humid or high temperature environments, the self-healing rate is significantly improved, and more than 90% of the protective performance of the coating can be restored.

The application value of PTFE coating in D1S2.8 bottle valve
PTFE coating enables the bottle valve to maintain a stable surface state in a corrosive environment, and the dosage deviation is reduced from ±3% to ±1%, significantly improving the analysis accuracy.

In the simulated industrial chromatography analysis scenario, the life of the uncoated bottle valve is 6 months, while the life of the PTFE coated bottle valve exceeds 5 years, and the maintenance cost is reduced by 80%.

Pharmaceutical field: In the preparation of nano-drugs, the coating reduces the droplet diameter deviation from ±10% to ±3%, improving the uniformity of the drug.
Chemical analysis: In conjunction with the automatic sampler, it can achieve 72 hours of continuous operation with a failure rate of less than 0.1%.
Environmental monitoring: In the PM2.5 sampler, the weather resistance of the coating enables the device to maintain dosage stability in extreme environments, with a data error rate of less than 2%.
